8x12 Lean To Shed Plan
sku (build8x12-LT)

Emailed Plans: $29.99
(8 1/2" x 11" Emailed PDF

Postal Mailed Plans: $35.99
(8 1/2" x 11" Postal mailed)

Buy E-MAILED Version of Plansbuy now button
Buy POSTAL-MAILED Versionbuy now button

How To Build A Shed eBook included with every shed plans purchase.

Instant download - The shed plans are emailed to you so you can start immediately.

Materials List - Easily get bids

Easy To Build From - Professionally drawn. See example below.



More images of the 8x12 Lean To Shed Plans

8x12 Lean To Shed Plans End View

8x12 Lean To Shed Plans End View

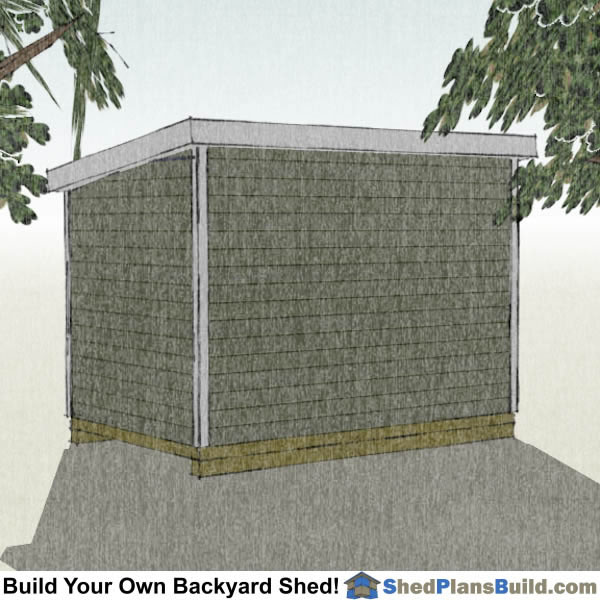

8x12 Lean To Shed Plans Left Rear

8x12 Lean To Shed Plans Left Rear

8x12 Lean To Shed Plans Right Rear

8x12 Lean To Shed Plans Right Rear

8x12 Lean to Shed Plans Right

8x12 Lean To Shed Plans Right

8x12 Lean To Shed Floor Plan

8x12 Lean To Shed Floor Plan

8x12 Lean To Shed Plans Example:

8x12 Lean To Shed Plans Example:

A Beautiful Lean To Shed Plan

The 8x12 lean to shed is a useful sized lean to shed that comes in at 96 squrae feet. So if you need a shed that is 100 square feet or less then the 8x12 lean to shed will work.. The 6068 door is designed to go on any of the shed walls, there are wall framing plans included to frame the door on all of the walls.

FREE 8x12 Lean To Shed Materials List (Click to Download)

storage shed buiding materials list download

8x12 Lean To Shed Plans Include The Following:

  • Materials List: The shed plans come with a complete materials list that is broken down by parts of the shed.
  • 5 Foundations: The shed plans include plans for a wood rail foundation, concrete slab, poured pier, concrete block pier, treated wood on crushed gravel.
  • Floor: 2x6 floor joists with 3/4" floor sheathing.
  • Walls Framing: 2x4 framing at 16" on center with a double top plate, just like a home is framed.
  • Wall Height: The shed wall height is drawn to 7'-7" with the option to use 92 5/8" framing studs which make an 8'-1" wall if you want a taller wall.
  • Door: Home Built Door Or Factory Built Door
    • Double End Door Size - 6'-0" x 6'-8"
  • Siding: T-111 exterior siding. Other sidings such as vinyl or cement based sidings may be used.
  • Roof: The roof is framed using 2x4's to build the trusses. It is sheeted with 1/2" O.S.B. The plans give you the dimensions and cut angles so you can build the roof rafters on the ground and then put them up on the top plates.
  • Roof Pitch: 2/12, this means that for every 10 inches of rise there is 12 inches of run horizontally.
  • Roof Overhang: 6" on the sides and 6" on the front and back.
  • Roofing: Low slope metal roofin or 25 year asphalt shingles installed using the manufacturers recommended installation instructions.
  • Windows: No windows shown on the plans but the How To manual shows how to build window openings.
  • Trim: 1x4 and 1x6 wood, masonite or cement trim materials are used to finish the corners, roof eves and facia, and door.
  • Floor Load: 50 pounds per square foot for framed floors. You don't want your shed floor to feel spongy.
  • Roof Snow Load: 40 pounds per square foot. This is more than adequate for most areas. If you live in an area with a high snow load you should check with your local building department for your local snow load. Contact us and we can specify stronger roof framing.
