16x24 gambrel shed plans

16x24 Studio Shed Plan
sku (build16x24-S1)

Emailed Plans: $44.99
(8 1/2" x 11" Emailed PDF

Postal Mailed Plans: $49.99
(8 1/2" x 11" Postal mailed)

Buy E-MAILED Version of Plansbuy now button
Buy POSTAL-MAILED Versionbuy now button

How To Build A Shed eBook included with every shed plans purchase.

Instant download - The shed plans are emailed to you so you can start immediately.

Materials List - Easily get bids

Easy To Build From - Professionally drawn. See example below.



More images of the 16x24 Modern Shed Plans

16x24 Modern Shed Plans End View

16x24 Modern Shed Plans End View

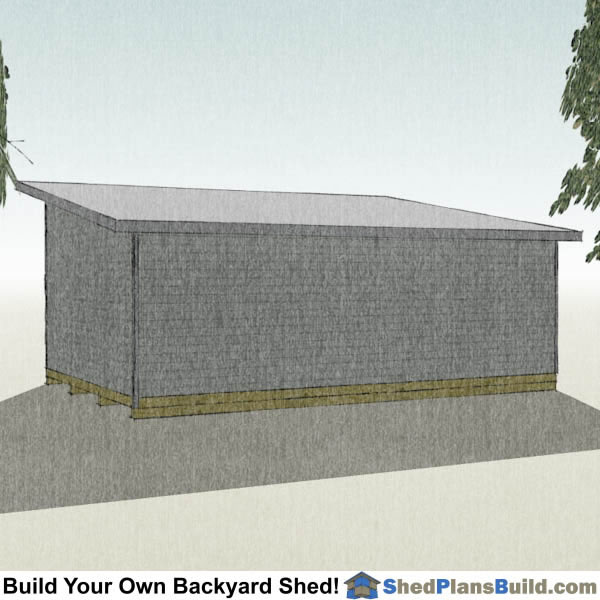

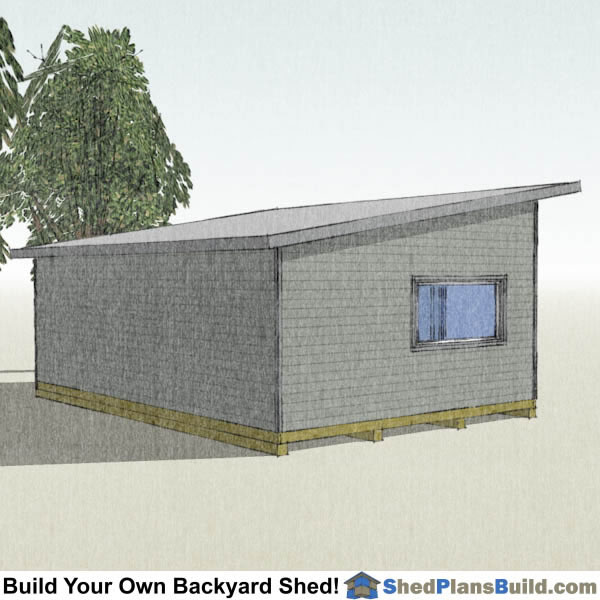

16x24 Modern Shed Plans Left Rear

16x24 Modern Shed Plans Left Rear

16x24 Modern Shed Plans Right Rear

16x24 Modern Shed Plans Right Rear

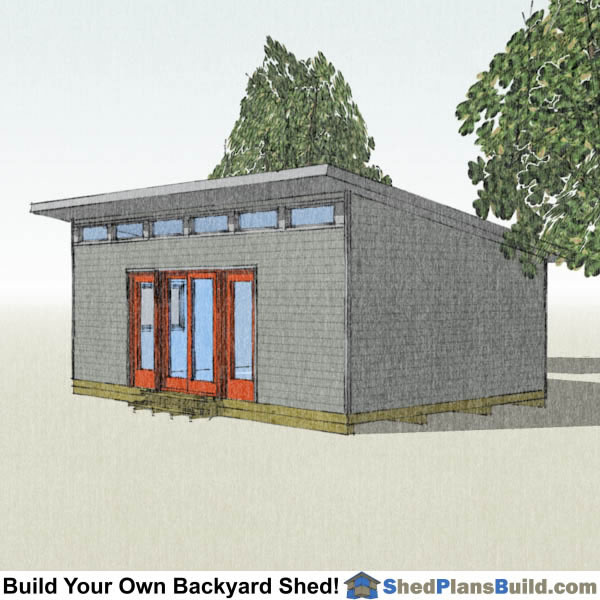

16x24 Modern Shed Plans Right

16x24 Modern Shed Plans Right

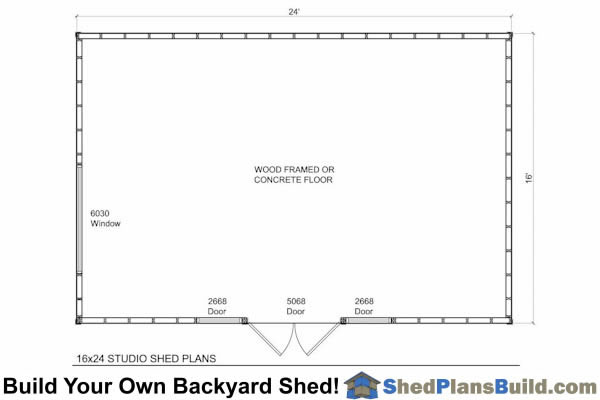

16x24 Modern Studio Shed Floor Plan

16x24 Modern Studio Shed Floor Plan

16x24 Modern Shed Plans Example:

16x24 Modern Shed Plans Example

A Beautiful Gambrel Shed Plan

Our largest moden studio shed, the 16' x 24' modern shed, boasts a huge 384 square feet of work space. This is enough room for several people to have office space in or for you to create a work studio or gallery.



FREE 16x24 Modern Shed Materials List (Click to Download)

storage shed buiding materials list download

16x24 Gambrel Shed Plans Include The Following:

  • Materials List: The shed plans come with a complete materials list that is broken down by parts of the shed.
  • 2 Foundations: There are 2 different foundations are included in the plans, Wood Skid and Concrete Slab.
  • Floor: 2x6 floor joists with 3/4" floor sheathing.
  • Walls Framing: 2x4 framing at 16" on center with a double top plate, just like a home is framed.
  • Wall Height: The lower shed wall height is drawn to 7'-7" and the higher wall is 10'-1 3/4".
  • Door: Factory Build Door:
    • Double Door Size - 5'-0" x 6'-8"
  • Siding: T-111 exterior siding. Other sidings such as vinyl or cement based sidings may be used.
  • Roof: The roof on the 16x24 gambrel shed is large enough that we recommend that the owner and builder consult a local structural engineer to size and specify the framing members and connections. The plans do include a guideline for the rafter construction but it is the responsibility of the owner to verify that they will satisfy local roof loading conditions.
  • Roof Pitch: 2/12
  • Roof Overhang: 12" on the eves and gable ends
  • Roofing: Low slope metal roofing or 25 year asphalt shingles with low slope application.
  • Windows: The shed has four windows. Two windows on the sides of the doors are actually fixed doors. The window on the side is a 6030 window, the operation to be determined by the owner.
  • Trim: 1x4 and 1x6 wood, masonite or cement trim materials are used to finish the corners, roof eves and facia, and door.
  • Floor Load: 50 pounds per square foot for framed floors. You don't want your shed floor to feel spongy.
  • Roof Snow Load: 40 pounds per square foot. This is more than adequate for most areas. If you live in an area with a high snow load you should check with your local building department for your local snow load.
