16x24 gambrel shed plans

16x24 Gambrel Shed Plan
sku (build16x24-GB)

Emailed Plans: $44.99
(8 1/2" x 11" Emailed PDF

Postal Mailed Plans: $49.99
(8 1/2" x 11" Postal mailed)

Buy E-MAILED Version of Plansbuy now button
Buy POSTAL-MAILED Versionbuy now button

How To Build A Shed eBook included with every shed plans purchase.

Instant download - The shed plans are emailed to you so you can start immediately.

Materials List - Easily get bids

Easy To Build From - Professionally drawn. See example below.



More images of the 16x24 Gambrel Shed Plans

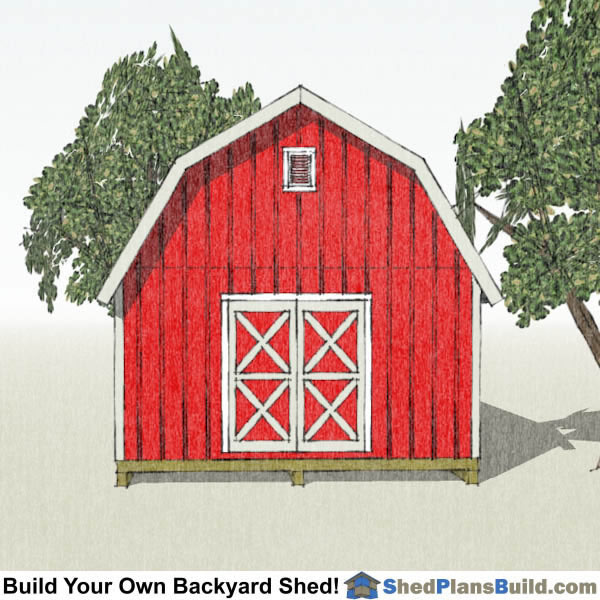

16x24 Gambrel Shed Plans End View

16x24 Gambrel Shed Plans End View

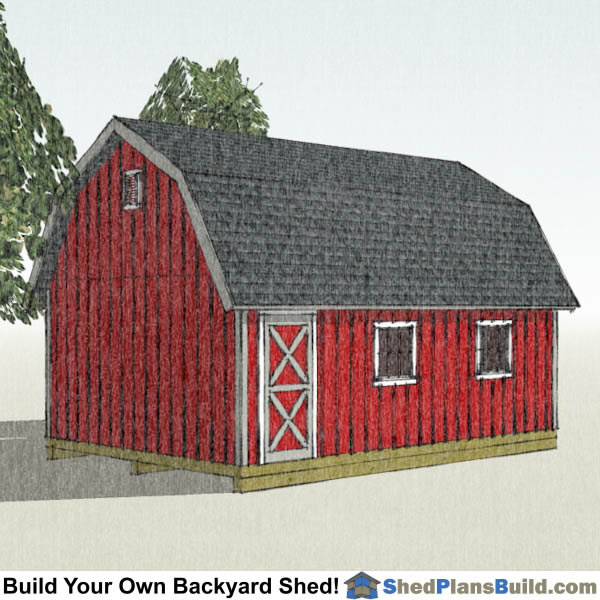

16x24 Gambrel Shed Plans Left Rear

16x24 Gambrel Shed Plans Left Rear

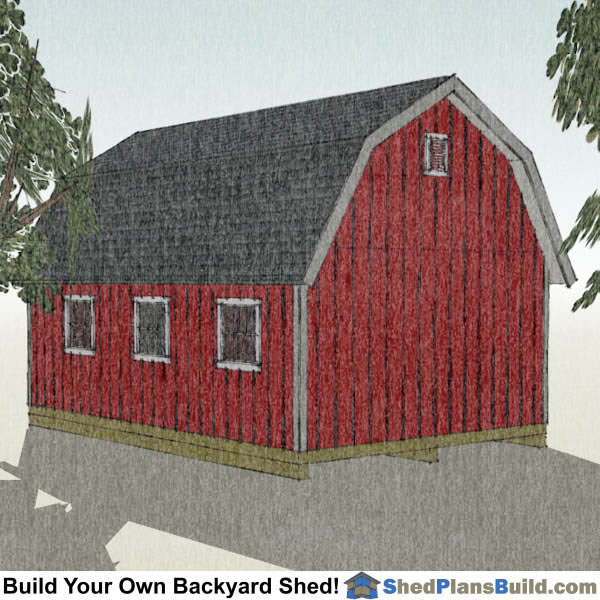

16x24 Gambrel Shed Plans Right Rear

16x24 Gambrel Shed Plans Right Rear

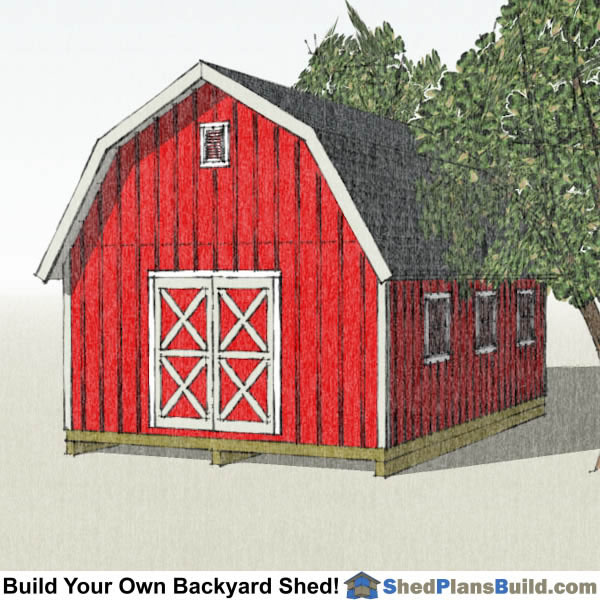

16x24 Gambrel Shed Plans Right

16x24 Gambrel Shed Plans Right

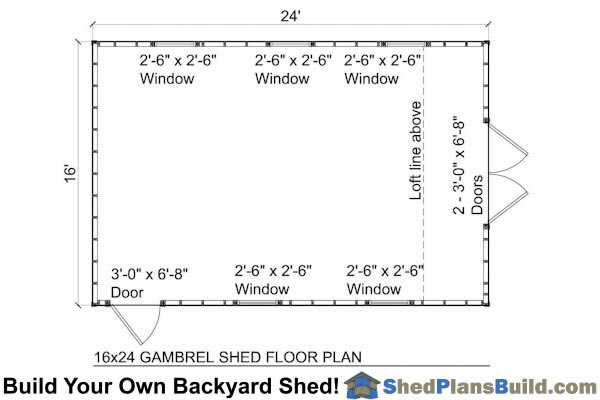

16x24 Gambrel Shed Floor Plan

16x24 Gambrel Shed Floor Plan

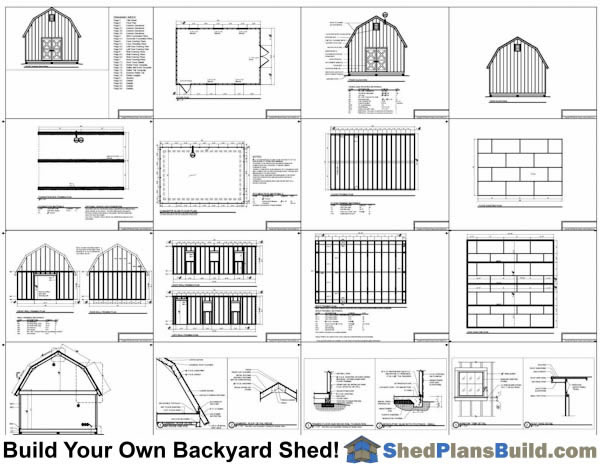

16x24 Gambrel Shed Plans Example:

16x24 Gambrel Shed Plans Example:

A Beautiful Gambrel Shed Plan

As one of our largest gambrel sheds the 16x24 gambrel barn is big enough to be used as a small barn or large workshop. The upper loft area has 320 square feet of addtional storage space with over 6 feet of headroom.

The plans are included to build the doors on site or you can purchase them from a local door factory.

16x24 Gambrel Shed Plans Include The Following:

  • Materials List: The shed plans come with a complete materials list that is broken down by parts of the shed.
  • 5 Foundations: The shed plans include plans for a wood rail foundation, concrete slab, poured pier, concrete block pier, treated wood on crushed gravel.
  • Floor: 2x6 floor joists with 3/4" floor sheathing.
  • Walls Framing: 2x4 framing at 16" on center with a double top plate, just like a home is framed.
  • Wall Height: The shed wall height is drawn to 7'-7" with the option to use 92 5/8" framing studs which make an 8'-1" wall if you want a taller wall.
  • Door: Home Built Door
    • Double End Door Size - 6'-0" x 6'-8"
    • Side Door - 3'-0" x 6'-8"
  • Siding: T-111 exterior siding. Other sidings such as vinyl or cement based sidings may be used.
  • Roof: The roof on the 16x24 gambrel shed is large enough that we recommend that the owner and builder consult a local structural engineer to size and specify the framing members and connections. The plans do include a guideline for the rafter construction but it is the responsibility of the owner to verify that they will satisfy local roof loading conditions.
  • Roof Pitch: 7/12 and 12/7
  • Roof Overhang: 6" on the eves and 12" on the gable ends
  • Roofing: 25 year asphalt shingles.
  • Windows: The shed has five windows. The three windows on the side walls are 2036 (2'-6" x 2'-6").
  • Trim: 1x4 and 1x6 wood, masonite or cement trim materials are used to finish the corners, roof eves and facia, and door.
  • Floor Load: 50 pounds per square foot for framed floors. You don't want your shed floor to feel spongy.
  • Roof Snow Load: 40 pounds per square foot. This is more than adequate for most areas. If you live in an area with a high snow load you should check with your local building department for your local snow load.
