10x12 Lean to shed plans

10x12 Modern Shed Plans
sku (build10x12-S1)

Emailed Plans: $24.99
(8 1/2" x 11" Emailed PDF

Postal Mailed Plans: $30.99
(8 1/2" x 11" Postal mailed)

Buy E-MAILED Version of Plansbuy now button
Buy POSTAL-MAILED Versionbuy now button

How To Build A Shed eBook included with every shed plans purchase.

Instant download - The shed plans are emailed to you so you can start immediately.

Materials List - Easily get bids

Easy To Build From - Professionally drawn. See example below.



More images of the 10x12 Modern Shed Plans

10x12 Lean To Shed Plans End View

10x12 Modern Shed Plans End View

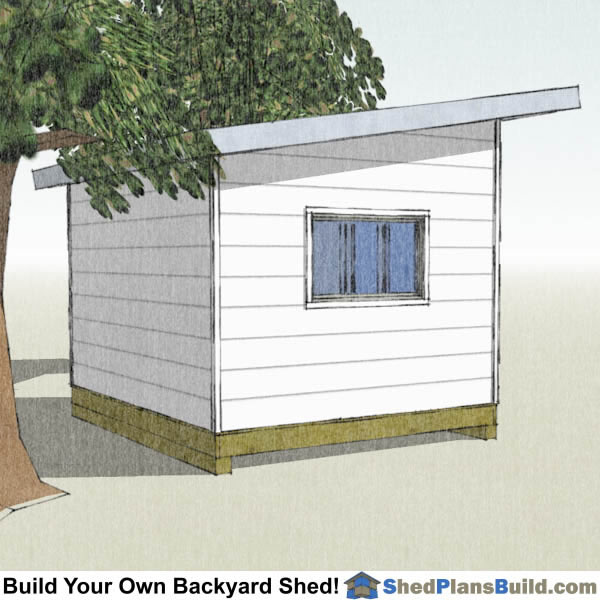

10x12 Lean To Shed Plans Left Rear

10x12 Modern Shed Plans Left Rear

10x12 Lean To Shed Plans Right Rear

10x12 Modern Shed Plans Right Rear

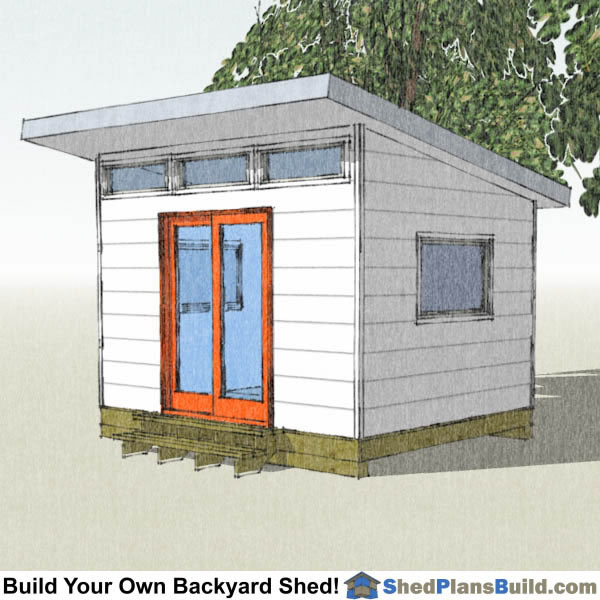

10x12 Lean to Shed Plans Right

10x12 Modern Shed Plans Right

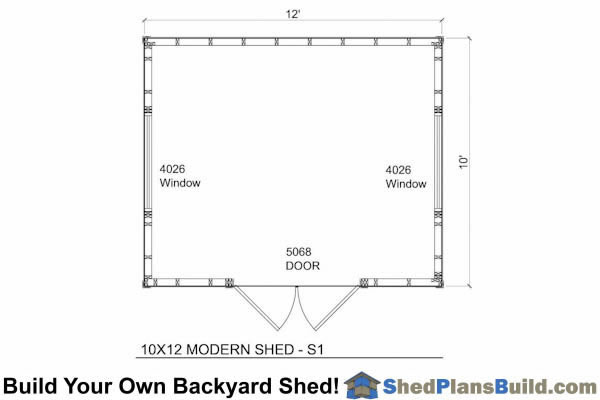

10x12 Modern Studio Shed Floor Plan

10x12 Lean To Shed Floor Plan

10x12 Modern Shed Plans Example:

10x12 Lean To Shed Plans Example:

FREE 10x12 Modern Shed Materials List (Click to Download)

storage shed buiding materials list download

10x12 Modern Shed Plans Include The Following:

  • Materials List: A complete materials list is included that is broken down by parts of the shed.
  • 5 Foundations: The shed plans include plans for a wood rail foundation, concrete slab, poured pier, concrete block pier, treated wood on crushed gravel.
  • Floor: 2x8 floor joists with 3/4" floor sheathing.
  • Walls Framing: 2x4 framing at 16" on center with a double top plate, just like a home is framed.
  • Wall Height: The shed rear wall height is drawn to 7'-7". The front wall height is 9'-2 1/2".
  • Door: Factory Built Door
    • Door Size - 6'-0" x 6'-8"
  • Siding: Horizontal lap siding is shown. Less expensive sidings such as 4x8 sheet siding, vinyl or stuco may be used.
  • Roof: The roof is framed using 2x8's to build the rafters. It is sheeted with 1/2" O.S.B. The plans give you the dimensions and cut angles so you can build the roof rafters on the ground and then put them up on the top plates.
  • Roof Pitch: 2/12, this means that for every 2 inches of rise there is 12 inches of run horizontally.
  • Roof Overhang: 12" on the sides and rear and 2'-6" on the front.
  • Roofing: Low slope metal roofin or 25 year asphalt shingles installed using the manufacturers recommended installation instructions.
  • Windows: Two 4026 (4'-0" x 2'-6")windows are shown on the plans. There is also an optional wall framing plan so you can build the end walls without windows.
  • Trim: 1x3 wood, masonite or cement trim materials are used to finish the corners, roof eves, and door.
  • Floor Load: 50 pounds per square foot for framed floors. You don't want your shed floor to feel spongy.
  • Roof Snow Load: 40 pounds per square foot. This is more than adequate for most areas. If you live in an area with a high snow load you should check with your local building department for your local snow load. Contact us and we can specify stronger roof framing.
